Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: GreeF
  • Model Number: PMG
  • Type: Wind Power Generator
  • Rated power: 9KW
  • Rated rotor speed: 500RPM
  • Generator type: 3 Phase AC Permanent-magnet
  • Generator material: 100% Copper wire+Nd-Fe-B
  • Portection grade: IP 54
  • Bearing brand: SKF
  • Wending Method: Star/Y
  • Life time: 20 Years
  • Application: Wind/Water Turbine
  • Warranty: 3 Years

Packaging & Delivery

Packaging Details: Foam+Plywooden case
Delivery Detail: 15 Working Days

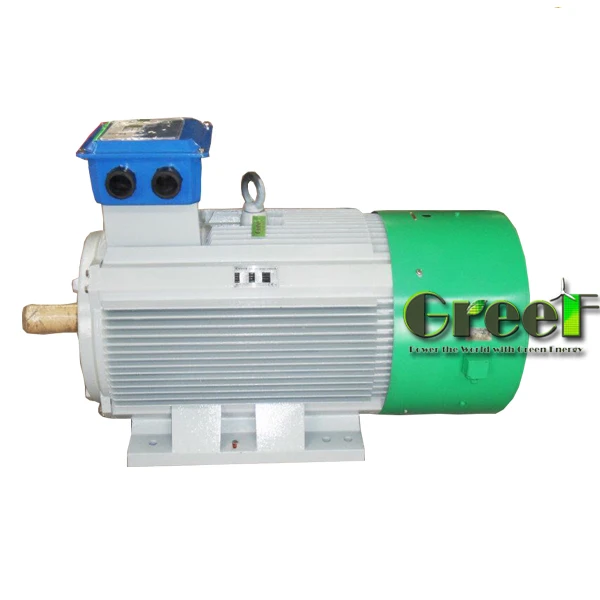

9KW 500RPM

Permanent Magnet Generator









Product Parameters



GDF-9KW-500RPM PMG Parameters



Model

GDF-160

Rated power

9KW

Rated rotate speed

500rpm

Rated voltage

220VAC

Start torque

2.59N.M

Rated torque

171.9N.M

Wending Method

Y

Generator type

Permanent Magnet AC

Number of phase

Three phase

Weight

136KG

Classification of degrees

IP54

Generator shell material

Steel









Product Advantage



1 Rare earth Nd-Fe-B permanent magnets
2 Low Speed
3 Direct Drive ,no use gear-box
4 SKF bearing
5 Power factor close to 1
6 Maintenance free , can be used in all environments .
7 Long life time >20years,  could run at high speed 24 hours 365 days .
8 Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
9 Customized : Voltage, Speed, Power, Frequency etc.
10 H class insulation, vacuum pressure impregnation.
11 Excellent heat dissipation , also can add fan cooling





System Solution

GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .

All the equipments can be produced according to customer's specific requirements



Customized Product



GreeF company supply variety of permanent magnet generators which is suitable for driven by following equipments to

1 Driven by Wind Power --------Wind turbine
2 Driven by Water Power ------- Hydro generator
3 Driven by Belt with  Motors
4 Driven by Motor
5 Dirven by  perpetual motion machine
6 Dirven by test plant
7 Dirven by yourselves  creation
8 Driven the permanent magnet generator and make it rotate then it can generate power









GREEF Company provide customized  generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.



RATED POWERRATED SPEEDRATED VOLTAGE FREQUENCY
0.5KW20rpm~400rpm12V~220Vac10Hz~60Hz
1KW20rpm~600rpm12V~220Vac10Hz~60Hz
2KW20rpm~1000rpm12V~400Vac10Hz~60Hz
3KW 20rpm~1500rpm48V~690Vac10Hz~60Hz
5KW20rpm~1500rpm48V~690Vac10Hz~60Hz
10KW 20rpm~1500rpm120V~690Vac10Hz~60Hz
15KW20rpm~3000rpm120V~690Vac10Hz~60Hz
20KW20rpm~3000rpm120V~690Vac10Hz~60Hz
25KW20rpm~3000rpm120V~1140Vac10Hz~60Hz
30KW20rpm~3000rpm120V~1140Vac10Hz~60Hz
50KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
80KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
100KW20rpm~3000rpm220V~1140Vac10Hz~60Hz
150KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
200KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
250KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
300KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
500KW20rpm~3000rpm380V~1140Vac10Hz~60Hz
700KW20rpm~3000rpm690V~1140Vac10Hz~60Hz
800KW20rpm~3000rpm690V~1140Vac10Hz~60Hz
1MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
2MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
3MW200rpm~3000rpm690V~1140Vac10Hz~60Hz
4MW600rpm~3000rpm690V~1140Vac10Hz~60Hz
5MW600rpm~3000rpm690V~1140Vac10Hz~60Hz





If you want to get the best price and more specifications, please contact us directly:

Mobile: +86-13465421810(WhatsApp)          Skype: generator@ greefenergy.cn
Email: generator@ greefenergy.cn                Wechat: 0086-13465421810









Packaging & Shipping



1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL / LCL to your nearest port

    Or Shipping by air to your nearest airport

    Or Shipping by DHL/FedEx/UPS/TNT to your door

If you have any requests in package and shipping , please contact us directly.







Our Services



All GREEF Generators are 3 years warranty for free, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.









Company Information



Qingdao Greef New Energy Equipment Co., Ltd are global supplier which focus on



Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine



blades, controller, invertor etc.



GREEF have its own engineer design team which design products ourselves.



FAQ

 1. Q: How your permanent magnet generator work?

    A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating electric power.



2. Q: Can your magnetic generator produce electrical power by itself?

    A: No, please refer A1.


3. Q: What is the power of your generator?
    A: We can manufacture from 100w to 5000kw.


4. Q: What is the rotate speed of your generator?
    A: From 20rpm to 3000rpm.


5. Q: Can you manufacture customized product?
    A: Yes, we can.

    Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.


6. Q: Can your company provide OEM service?
    A: Yes, we can.
